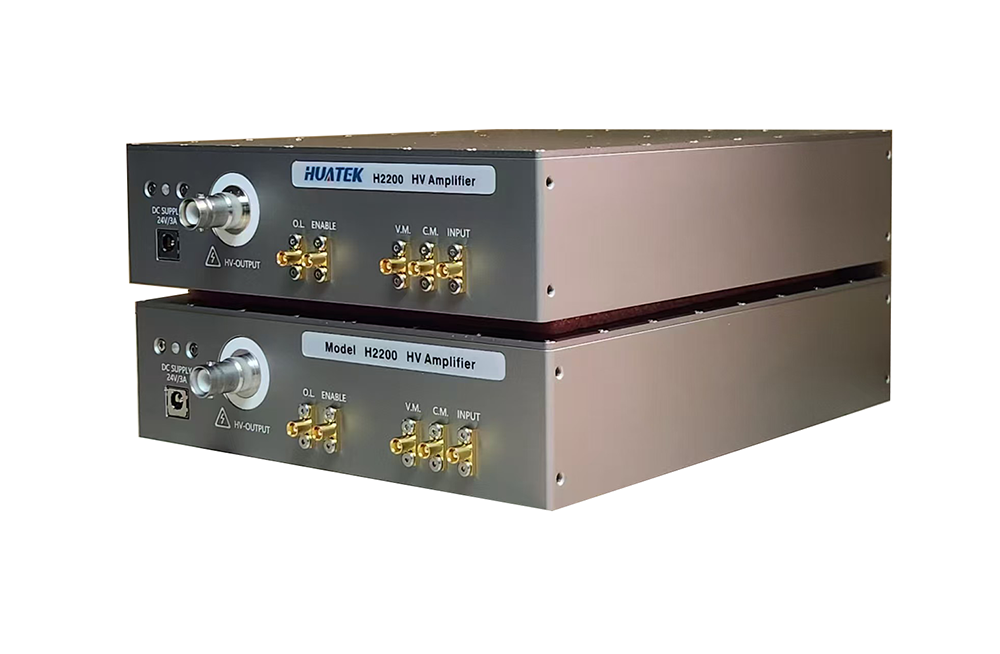

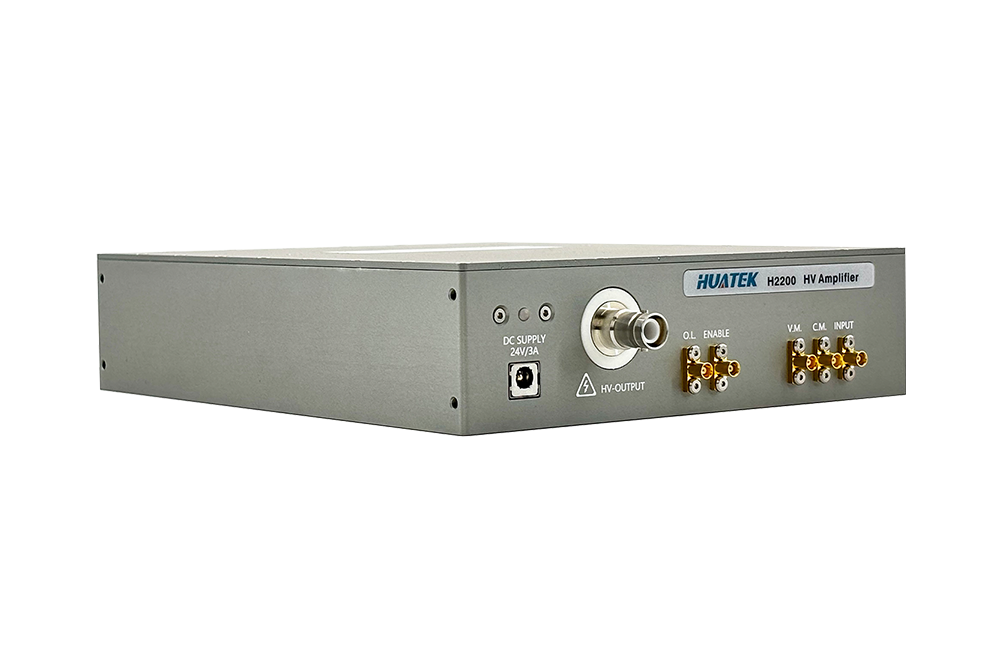

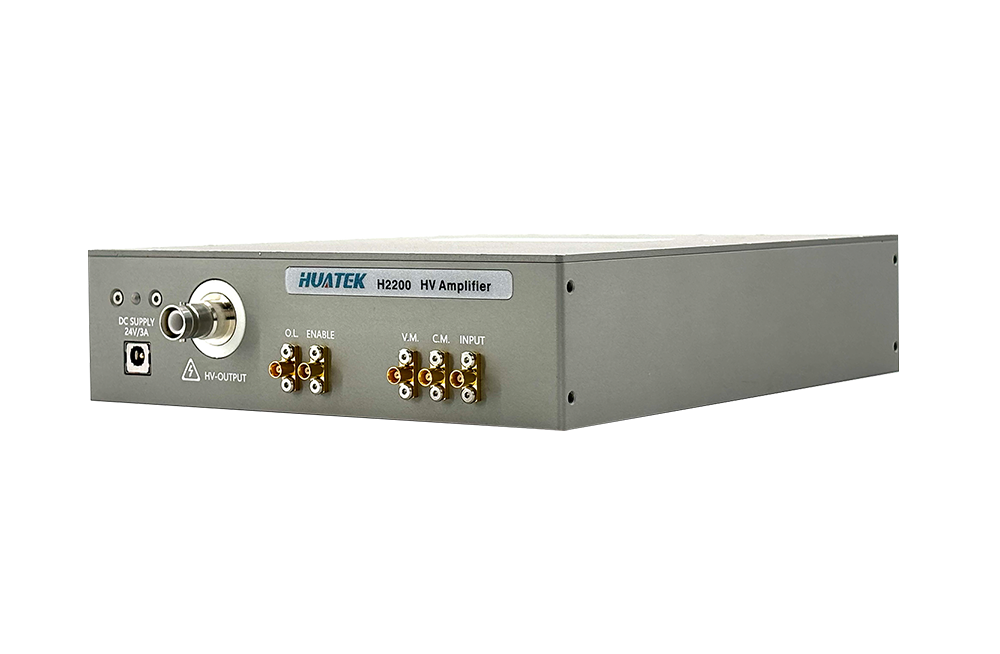

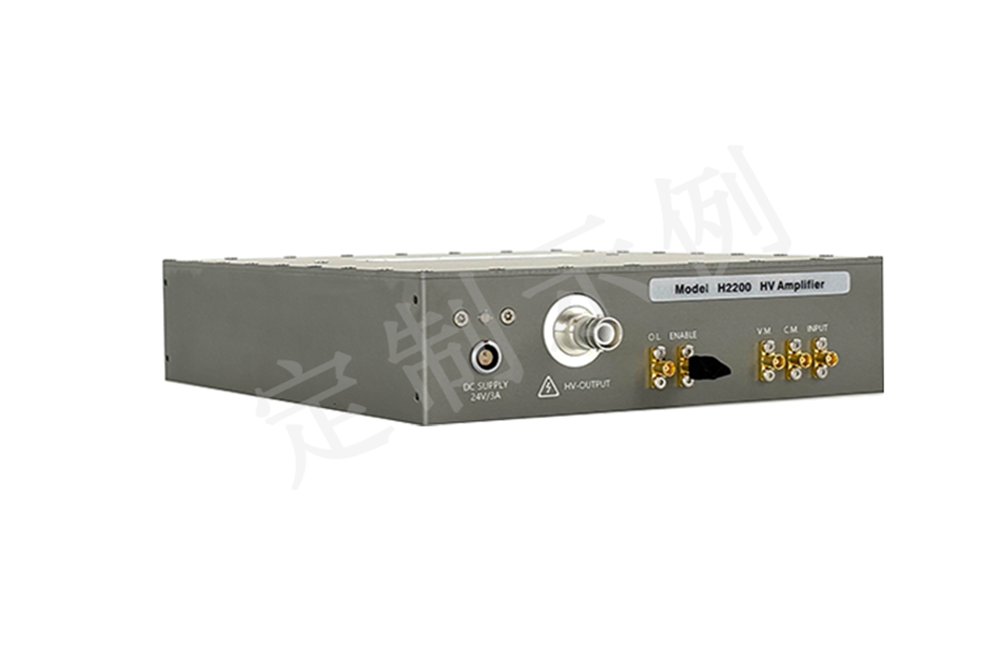

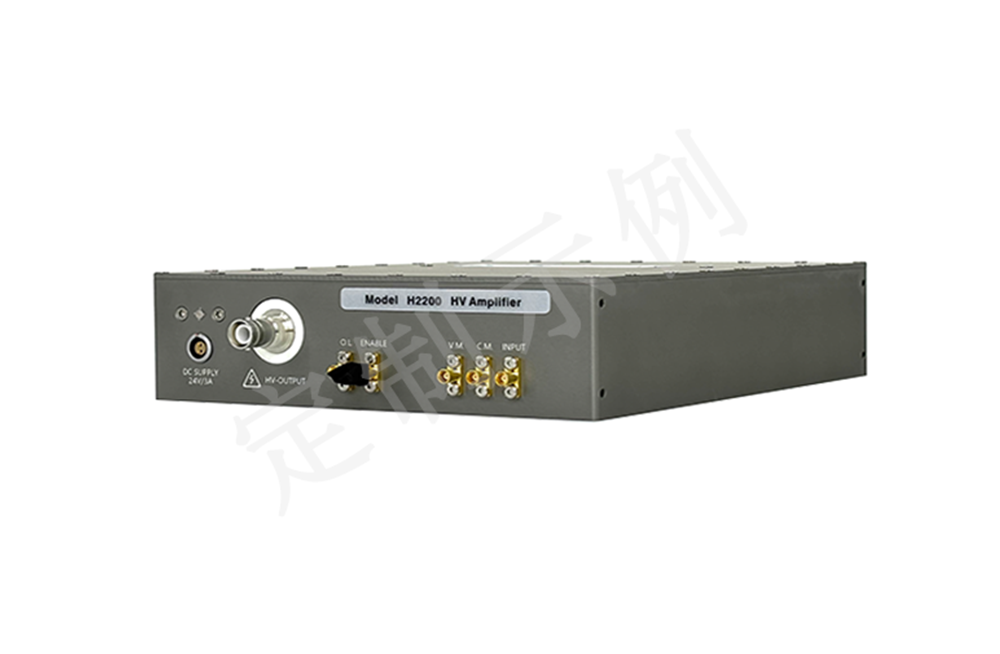

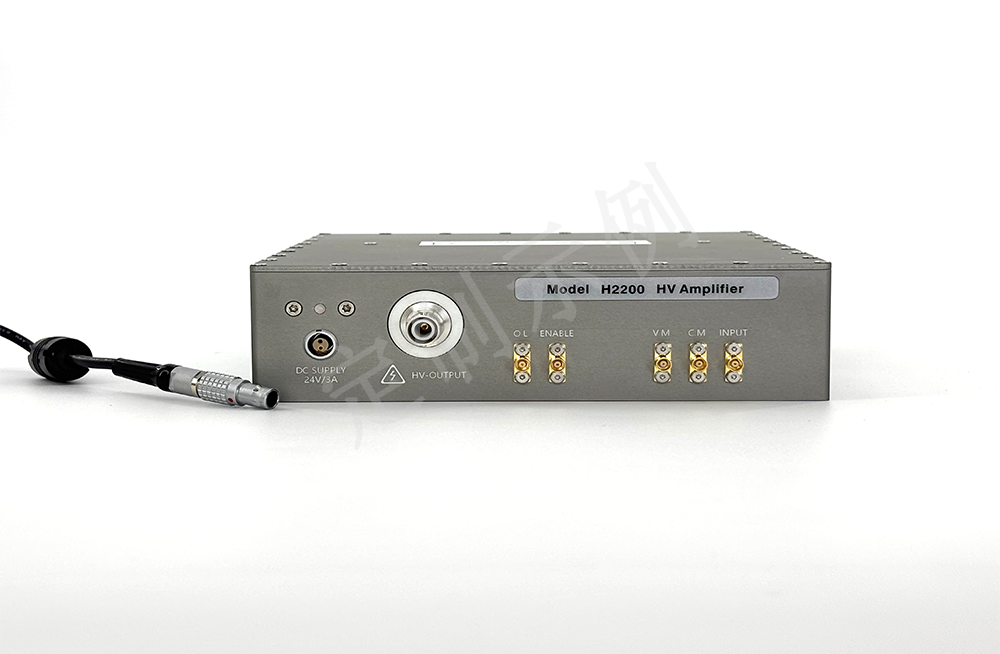

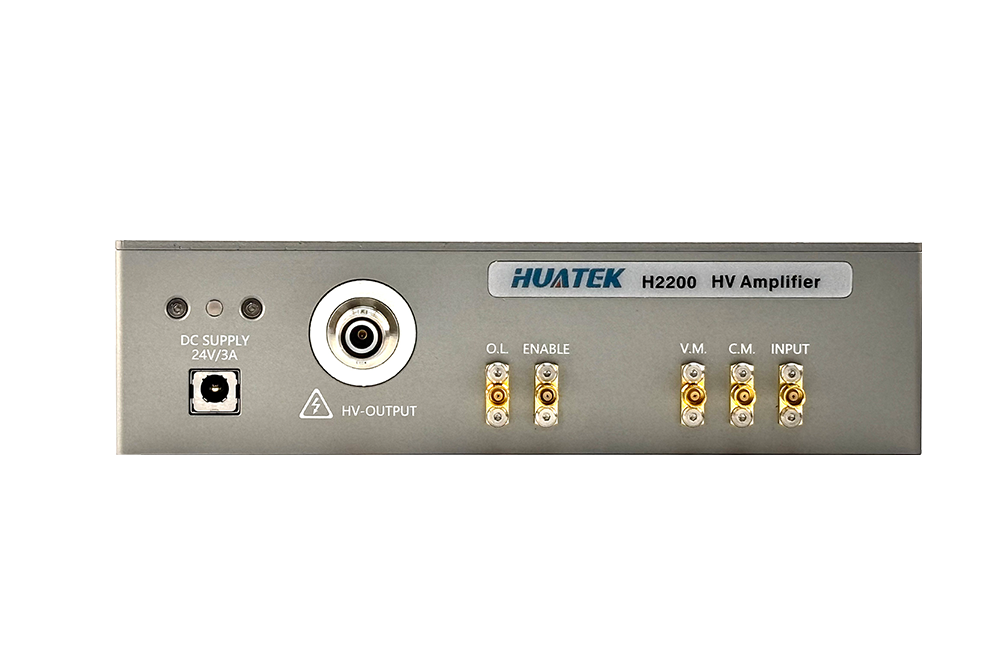

H2200 Embedded high-voltage amplification module

Huatek H2200 is a typical modular high-voltage signal amplifier. Compact in size, it is made of high-strength aluminum alloy material, combining portability with high durability, and can be easily integrated into equipment as a high-voltage module.

The H2200 is specially optimized for integrated development. It is equipped with a hiccup protection mode to enhance the fault tolerance of test equipment, and also features a fault signal interface. In the event of a fault, the alert signal can be transmitted through this interface, allowing for intuitive judgment of the device’s operating status.

✓ HV amplification：±2000V (4000VVp-p)

✓ Strong output capacity：±20mA，40Wp(Current unrestricted at all frequency ranges)

✓ Large-signal bandwidth：DC-10kHz
