H20230: ±200V/300mA/DC-500kHz_< ±500 V (<1000 Vpp) Series

H20230: ±200V/300mA/DC-500kHz

✓ HV Amplification：±200V (400Vp-p)

✓ Powerful Output：±300mA，60W (across full band)

✓ Large Signal Bandwidth：DC-500KHz

Call the hotline

8610-53351705

Online Consultation

Introduction

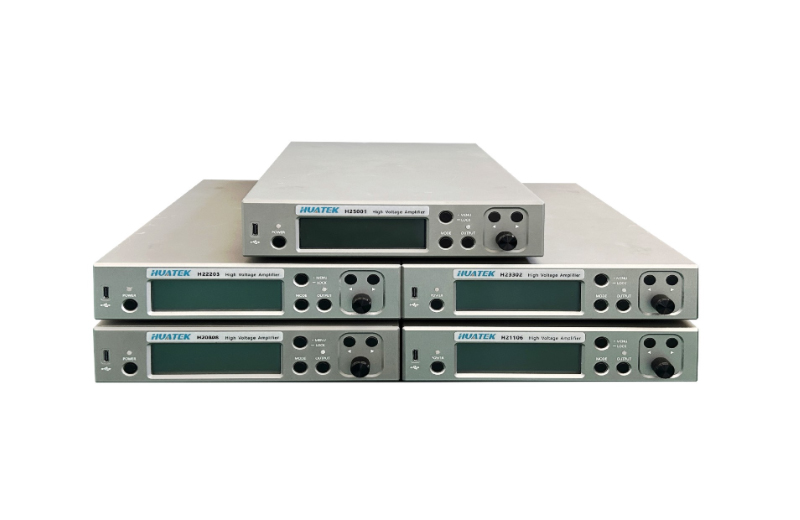

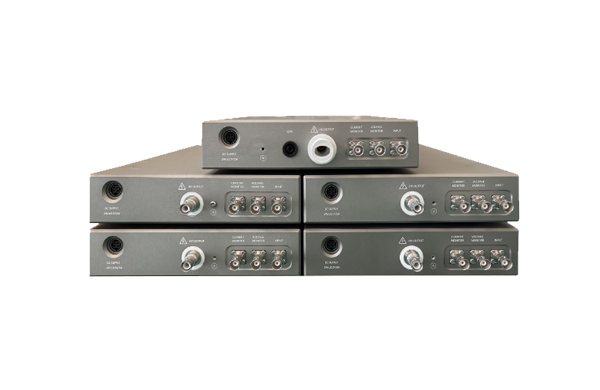

H20230 High Voltage Amplifier

Huatek H20230 is an outstanding desktop high voltage amplifier. The chassis is made of high strength aluminum, providing high portability and durability. It can be easily deployed in equipment as OEM module or used as desktop instrument.

H20230 not only has variable digital gain and offset adjustment, it also has a unique transient protection mode (Hiccup) with auto-recovery from a fault. It’s excellent performance and form factor can be applied in various high voltage scenarios.

✓ HV Amplification：±200V (400Vp-p)

✓ Powerful Output：±300mA，60W (across full band)

✓ Large Signal Bandwidth：DC-500KHz

Features

Highly Compact and Small：

<2U(4.45cm) height

Digital Gain：

0-100.0, 0.1 step

Ensured Rated Output Across Full Band with Effective Compensation：

Max ±10V input ; Gain 0-100.0 adjustable, 0.1 step

Build-in DC HV Source：

±200V，1V step，digital adjustment；Use as DC Source separately，or offset of AC output

Monitor：

Voltage Monitor, Current Monitor

Intelligent Protection：

Overload, Short Circuit；Single Mode, Hiccup Mode (Auto-Recovery)；One-key lock

Intelligent Cooling：

On Demand Air cooling ； Low Noise；ensuring component and circuit long term reliability

Control：

USB（TYPE C）, easy for control and integration

LCD Display：

voltage, protection, gain

Specifications

Max. Output Voltage	±200V(400Vp-p)	Voltage Monitor	1V/50V
Max. Output Current	±300mA，across full frequence range	Current Monitor	1V/50mA
Peak Output Power	60W	V/I Monitor Output Impedance	50Ω
Output Impedance	50Ω	V/I Monitor Output Connector	BNC
HV Output Connector	SHV	THD	-
Large Signal Bandwidth(-3dB)	DC-500LHz	Communication Interface	USB-C
Small Signal Bandwidth(-3dB)	DC-2.5MHzHZ	Power Supply	DC24V/5A
Slew Rate	>445V/us	Operating Environment	0~45 ℃/≤ 85% RH Non condensation /Altitude up to 2000 meters
Voltage Gain	0-100.0, 0.1步进	Stability	Non-cumulative drift:<50ppm/h Temperature-drift: 100ppm/℃ 23℃±3℃, preheating for 30min
DC Voltage Source	±200V，1V步进	Dimensions(exclude protrusions)	75205330mm (HWD)
Response Time	-	Weight	3.5Kg
Zero Drift	＜±100mV
Max. Input Voltage	±10V
Input Impedance	10KΩ
Input Connector	BNC
Output Protection	Overload，Short Circuit
Protection Mode	Singel，Hiccup （Auto Recovery）
