H30250: ±2kV/50mA/DC-60KHz_＞±500 V (>1000 Vpp) Series

H30250: ±2kV/50mA/DC-60KHz

✓ HV Amplification：±2KV(4KVpp)

✓ Powerful Output：±50mA ,100W(across full band)

✓ Large Signal Bandwidth：DC-60kHz

Call the hotline

8610-53351705

Online Consultation

Introduction

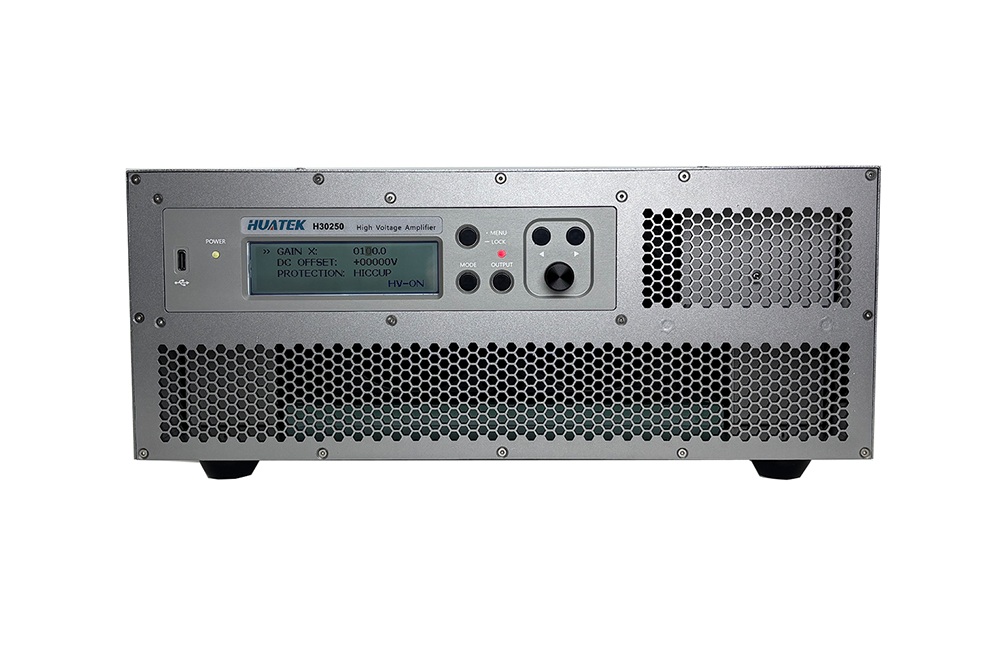

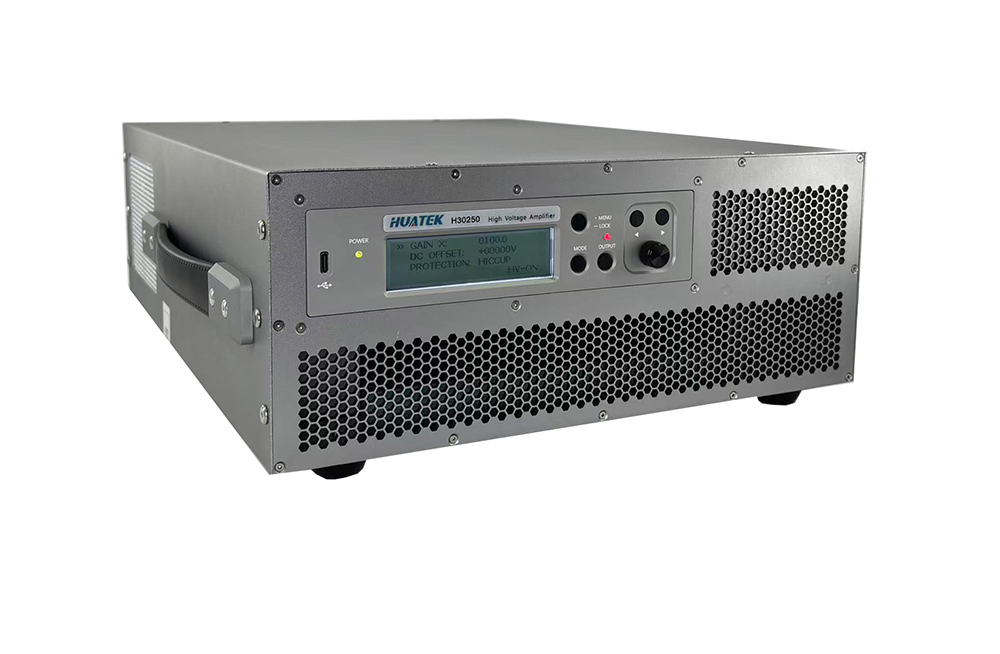

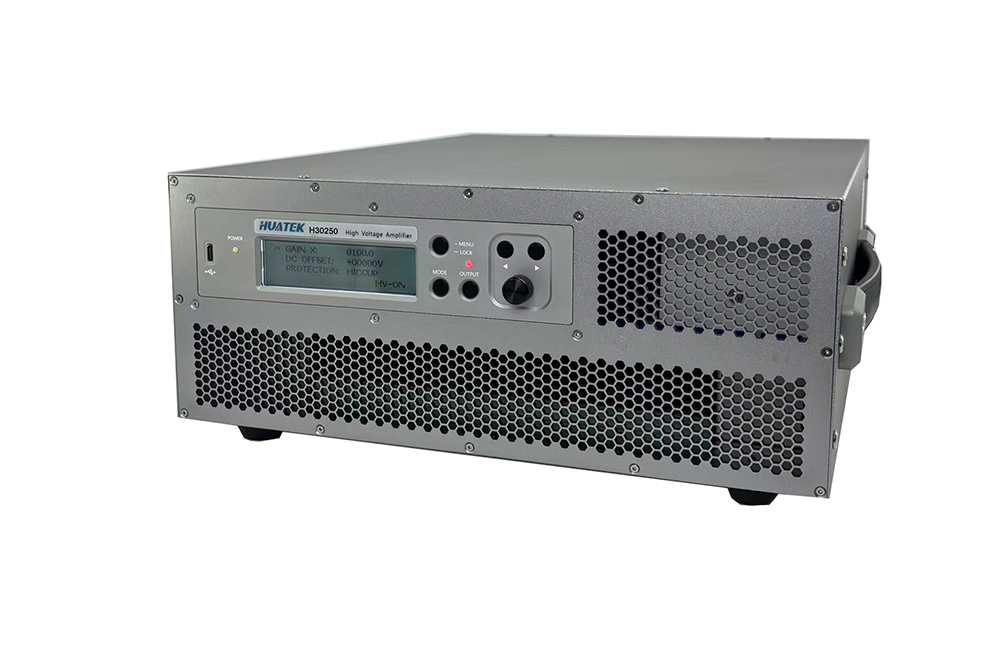

H30250 High Voltage Amplifier

Huatek H30250 is an outstanding desktop high voltage amplifier.

H30250 not only has variable digital gain and offset adjustment, it also has a unique transient protection mode (Hiccup) with auto-recovery from a fault. It’s excellent performance and form factor can be applied in various high voltage scenarios.

✓ HV Amplification：±2KV(4KVpp)

✓ Powerful Output：±50mA ,100W(across full band)

✓ Large Signal Bandwidth：DC-60kHz

Features

Digital Gain：

0-400，0.1 step

Ensured Rated Output Across Full Band with Effective Compensation：

Max ±10V input ; Gain 0-400.0 adjustable, 0.1 step

Build-in DC HV Source：

±2KV，1V step，digital adjustment；Use as DC Source separately，or offset of AC output

Monitor：

Voltage Monitor, Current Monitor

Intelligent Protection：

Overload, Short Circuit；Single Mode, Hiccup Mode (Auto-Recovery)；One-key lock

Intelligent Cooling：

On Demand Air cooling ； Low Noise；ensuring component and circuit long term reliability

Control：

USB（TYPE C）, easy for control and integration

LCD Display：

voltage, protection, gain

Specifications

Max. Output Voltage	±2kV(4kVp-p)	Voltage Monitor	1V/500V
Max. Output Current	±50mA，across full frequence range	Current Monitor	100mV/mA
Peak Output Power	100W	V/I Monitor Output Impedance	50Ω

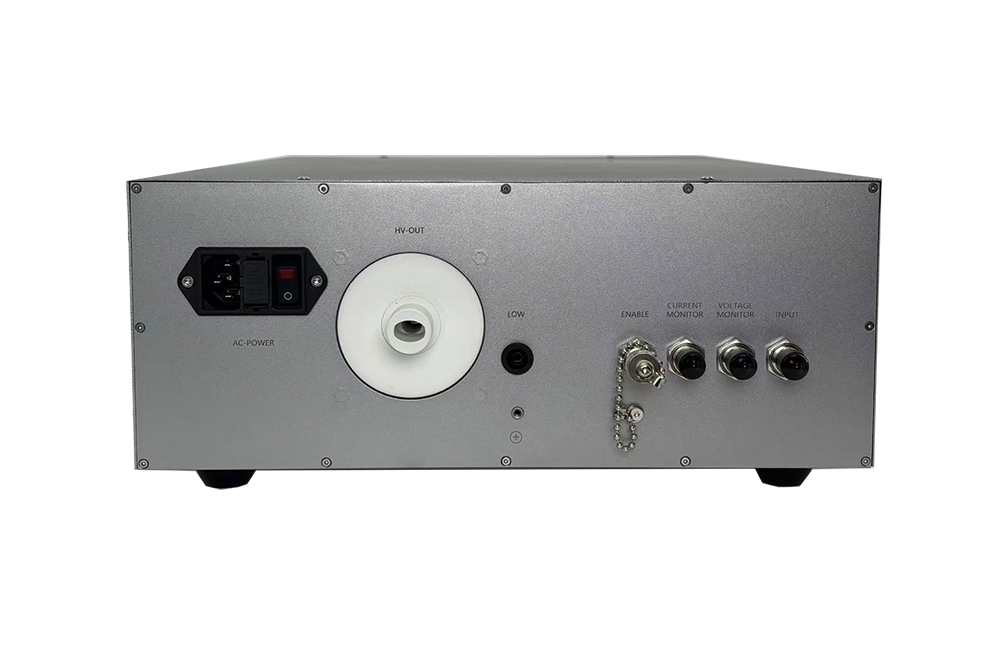

Output Impedance	100Ω	V/I Monitor Output Connector	BNC
HV Output Connector	4mm HVconnector	THD	-
Large Signal Bandwidth(-3dB)	DC-60KHz	Communication Interface	USB-C
Small Signal Bandwidth(-3dB)	DC-300KHZ	Power Supply	AC 220V
Slew Rate	>534V/us	Operating Environment	0~45 ℃/≤ 85% RH Non condensation /Altitude up to 2000 meters
Voltage Gain	0-400.0, 0.1 step	Stability	Non-cumulative drift:<50ppm/h Temperature-drift: 100ppm/℃ 23℃±3℃, preheating for 30min

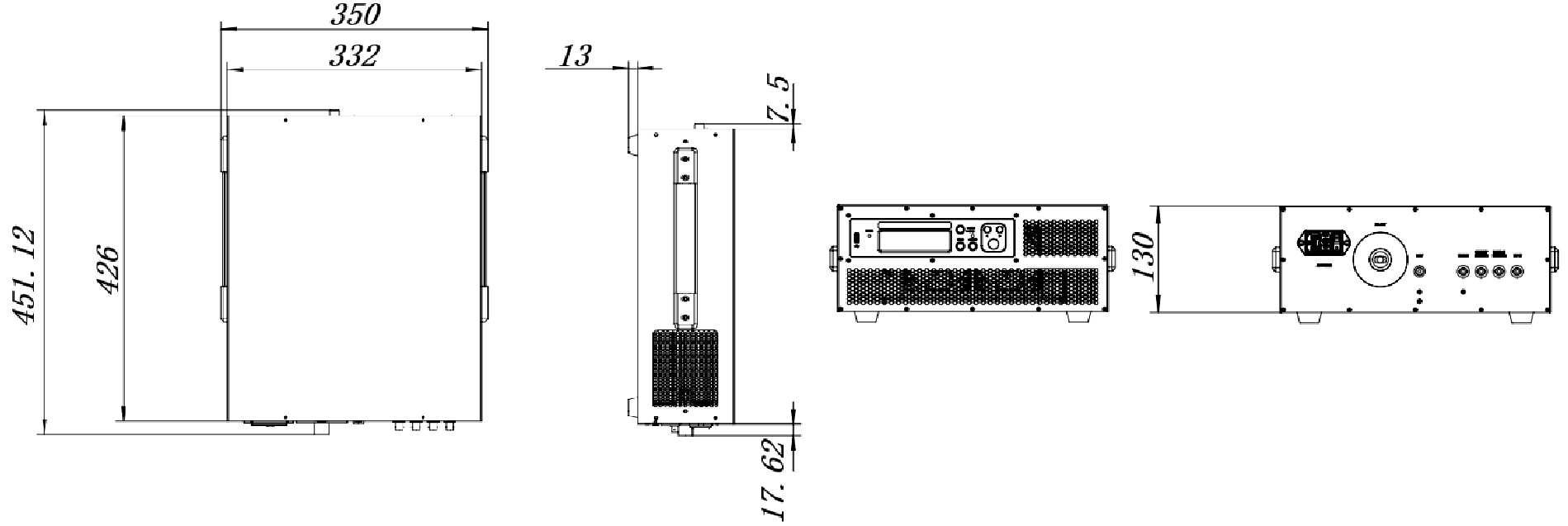

DC Voltage Source	±2KV，1V step	Dimensions (exclude protrusions)	133mm330mm440 (HWD)
Response Time	-	Weight	15Kg
Zero Drift	＜±100mV
Max. Input Voltage	±10V
Input Impedance	10KΩ
Input Connector	BNC
Output Protection	Overload，Short Circuit
Protection Mode	Singel，Hiccup（Auto Recovery）
